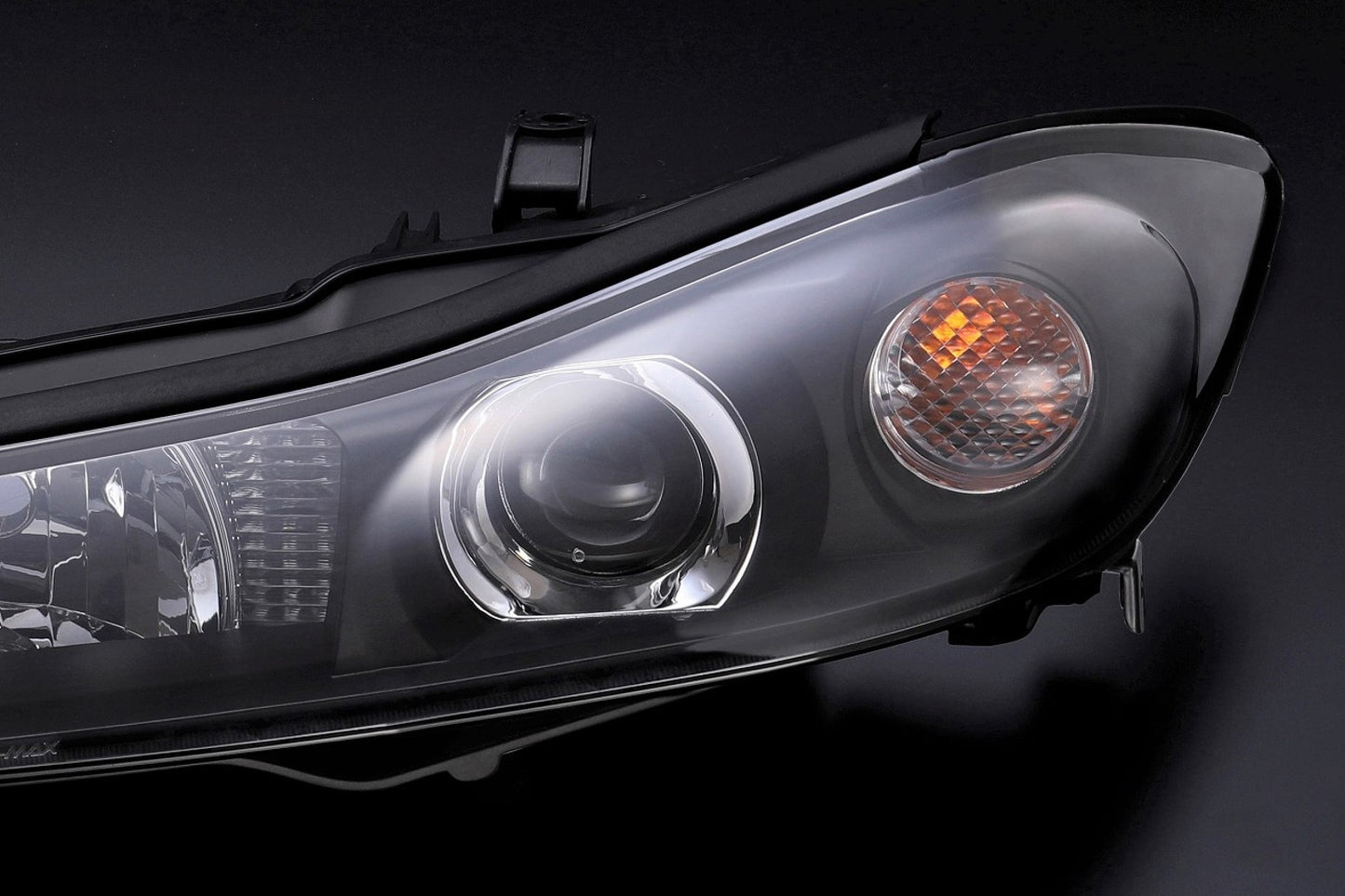

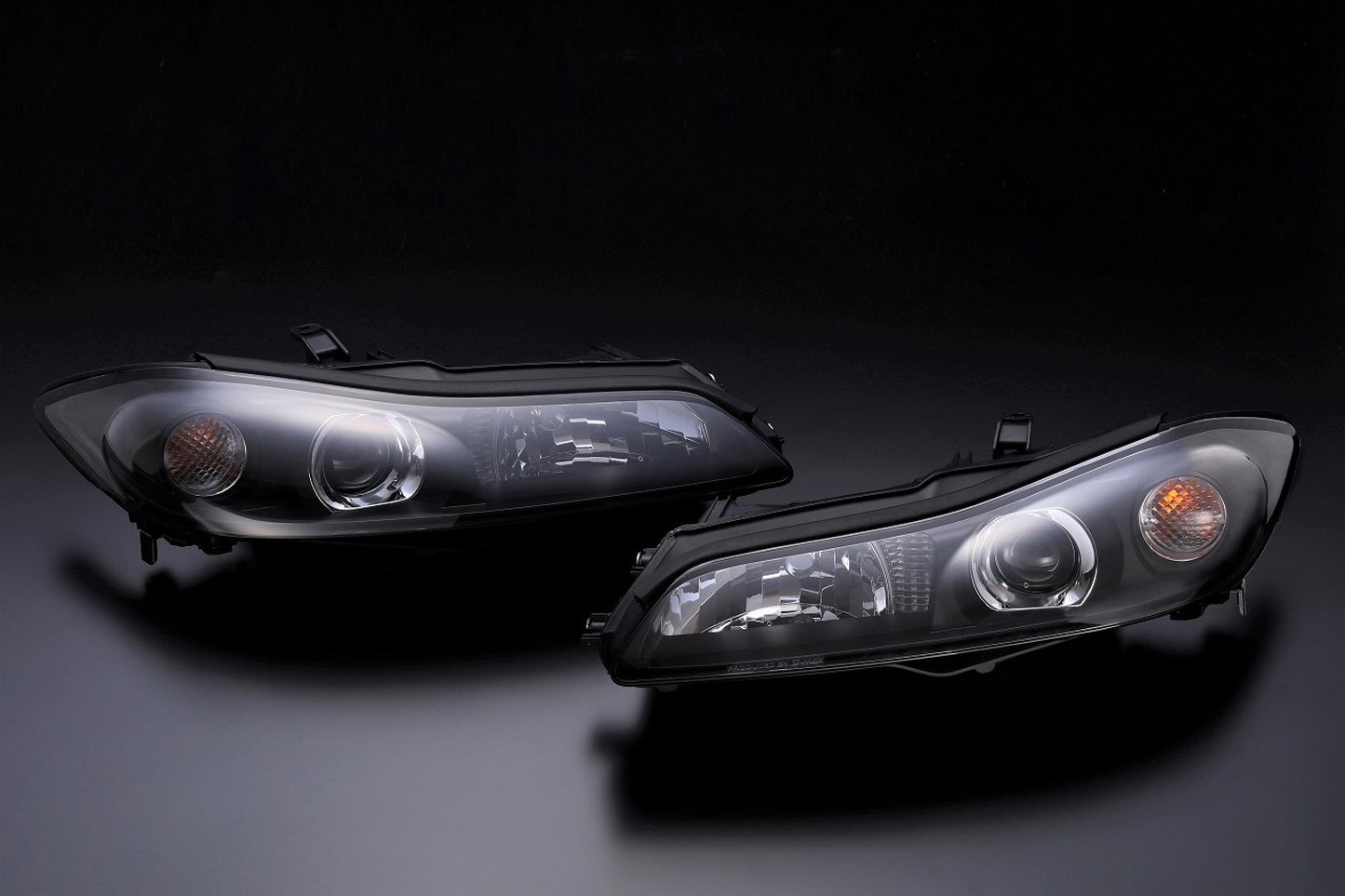

D-MAX Crystal Head Lamp Set Halogen Type - Silvia S15 DML5S15HLBSET ##595101112

**This is a NON-Stocked Item, please contact us to check the lead time before ordering.**

Compatibility:
Nissan Silvia S15 SR20DE(T)

Brand:
D-MAX

Manufacturer Part#:
DML5S15HLBSET

Stock#:
595101112

Specification:
-Installation Manual PDF
-Bulbs not included
- Material: acrylic resin (do not wipe the lens with a dry cloth as it is easily scratched)
- Optical axis adjustable (for right-hand)　
*The optical axis is not aligned at the time of shipment, so be sure to adjust it with a tester before use.
- Inner Color: Black
- Low beam bulb H1 / 12V55W
- High beam bulb HB3 / 12V65W
- Position (car width light) T10 / 12V5W
- Turn signal S25 pin angle difference / 12V21W amber
*For LOT after August 2022, it will be S25 (BA15s).

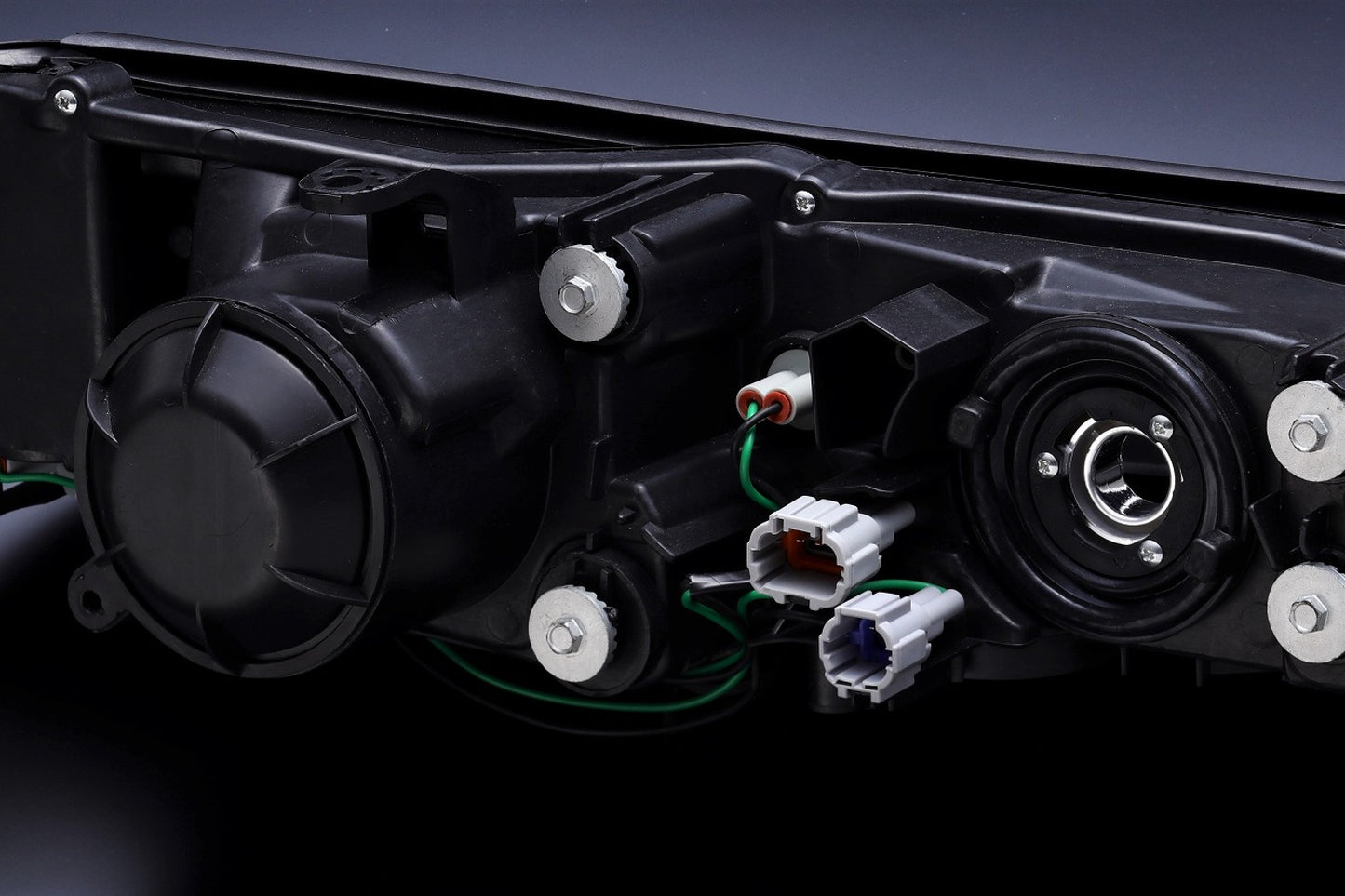

Mounting stock coupler compatible

Remarks:
- Since it is made with a halogen base, it cannot be installed on HID vehicles. When installing on HID vehicles, it is necessary to purchase a separate conversion harness KIT (DML1S15HLHT2).
- HID and halogen vehicles have different coupler shapes.
- When this product is installed, there may be a gap of several millimeters between the body and this product, but this is due to vehicle body and installation errors and is not abnormal.
- Headlamp Stay Mounts are often bent. In this case, the optional D-Max items are recommended (DMEMS15HLSSET)
