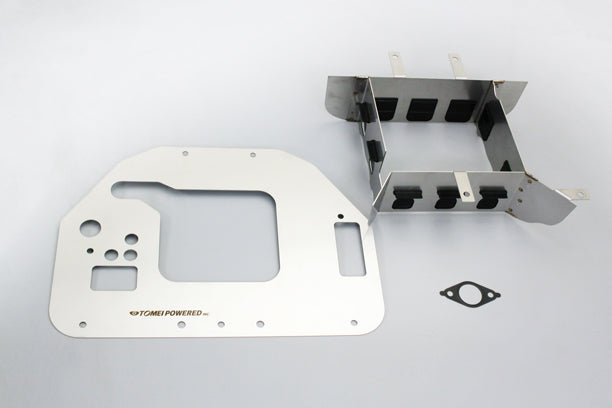

TOMEI POWERED Oil Pan Baffle Plate - JZX90 JZX100 1JZ ##612121680

TOMEI POWERED Oil Pan Baffle Plate - JZX90 JZX100 1JZ ##612121680

Regular price ¥19,550 JPY
Regular price Sale price ¥19,550 JPY
Sale Sold out
Shipping calculated at checkout.

Compatibility:
- TOYOTA MARK II JZX90 1JZ-GTE
- TOYOTA MARK II JZX100 1JZ-GTE
- TOYOTA CHASER JZX90 1JZ-GTE
- TOYOTA CHASER JZX100 1JZ-GTE
- TOYOTA CRESTA JZX90 1JZ-GTE
- TOYOTA CRESTA JZX100 1JZ-GTE
- TOYOTA ARISTO JZS147 2JZ-GTE

Brand:
Tomei Powered

Manufacturer Part#:
194008

Stock#:
612121680

Specification:
- Material: SUS304
- Baffle Upper Thickness: 1.2mm
- Baffle Lower Thickness: 1.2mm
- Weight:
  Upper: 490g / Lower: 600g (Includes rubber valve)

Remark:
- It is for the oil pan of FRONT SIDE.

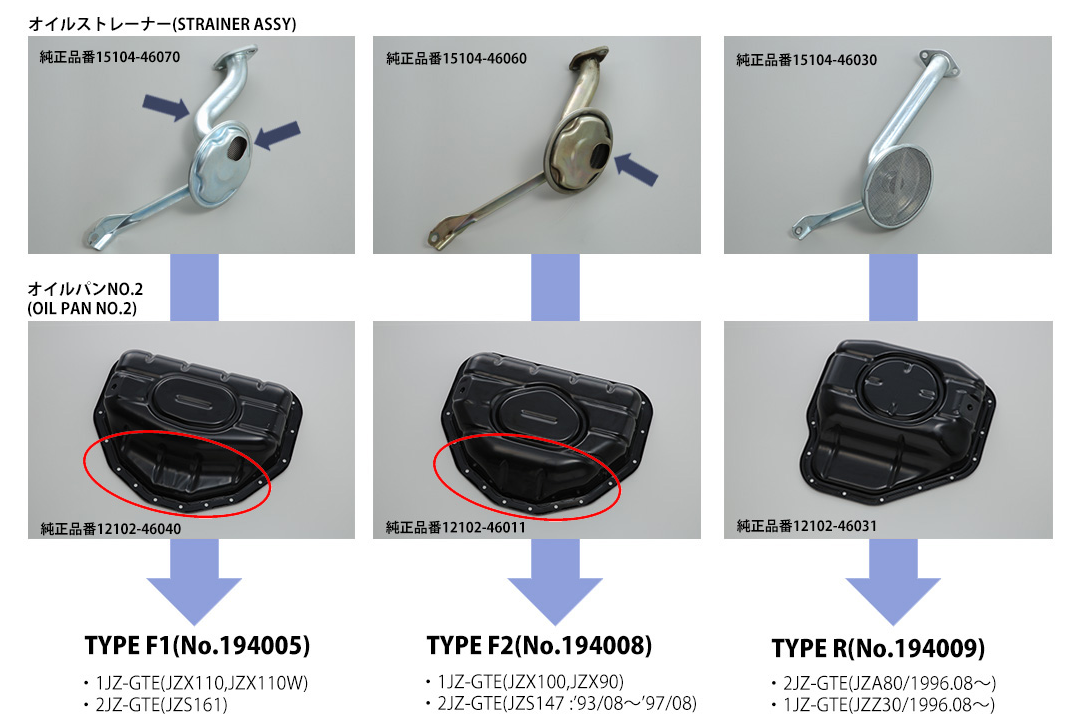

- This item is compatible with an engine that has an oil pan (NO.2) (OEM part number: 12102-46011) and an oil strainer (OEM part number: 15104-46060).
*Not compatible with center & rear side oil pans.
*Please make sure of compatibility before purchase.


*This is a non-stocked item, please make sure the lead time before purchase.

Box size: 36cm x 26cm x 12cm / 1.4kg
