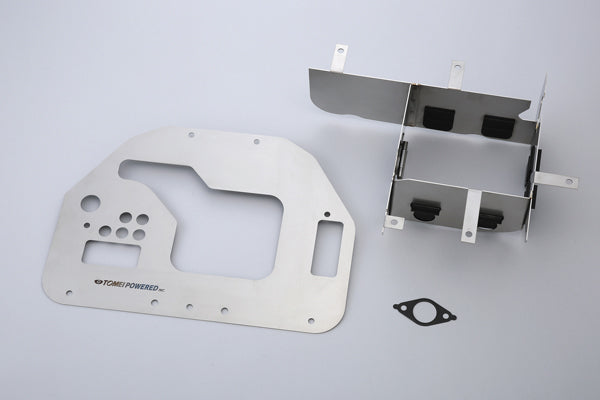

TOMEI POWERED Oil Pan Baffle Plate - JZS161 JZX110 2JZ ##612121612

TOMEI POWERED Oil Pan Baffle Plate - JZS161 JZX110 2JZ ##612121612

Regular price ¥19,550 JPY
Regular price Sale price ¥19,550 JPY
Sale Sold out
Shipping calculated at checkout.

Compatibility:
- ARISTO JZS161 2JZ-GTE
- MARK II JZX110 1JZ-GTE
- VERROSSA JZX110 1JZ-GTE
- MARK II BLIT JZX110W 1JZ-GTE

Brand:
Tomei Powered

Manufacturer Part#:
194005

Stock#:
612121612

Specification:
- Type: F
- Material: SUS304
- Baffle Upper Thickness: 1mm
- Baffle Lower Thickness: 1mm
- Weight
  Upper: 475g
  Lower: 635g (Includes rubber valve)

Remark:
- It is for the oil pan of FRONT SIDE.

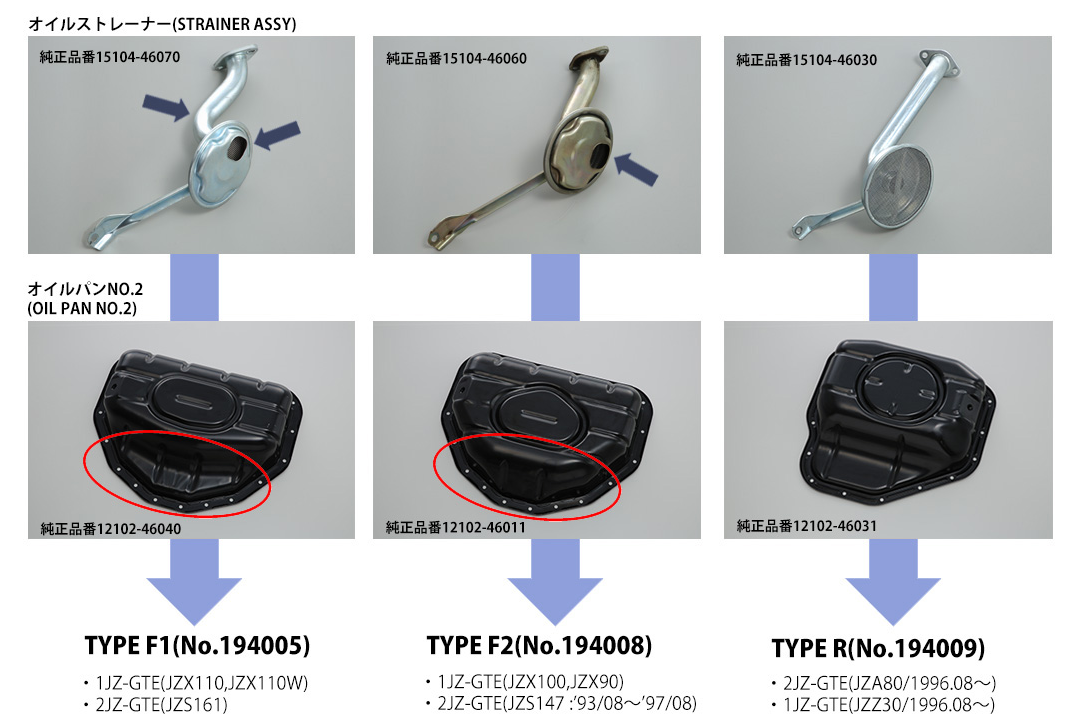

- This item is compatible with an engine that has an oil pan (NO.2) (OEM part number: 12102-46040) and an oil strainer (OEM part number: 15104-46070)

*Not compatible with center & rear side oil pans.
Please make sure of the compatibility before purchase.


*Product image for illustration purposes only. The actual product may vary.

*This is a non-stocked item, please make sure the lead time before purchase.

Box size: 36cm x 26cm x 12cm / 1.4kg
