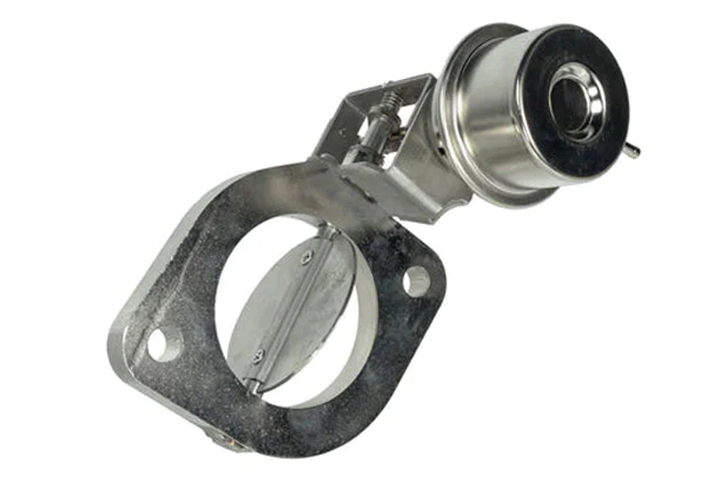

APEXI Active ECV Exhaust Control Valve A Type 70mm ##126141262

APEXI Active ECV Exhaust Control Valve A Type 70mm ##126141262

¥32,800 JPY
¥32,800 JPY
Sale Sold out
Shipping calculated at checkout.


**This is a NON-Stocked Item, please contact us to check the lead time before ordering.**

Brand:
APEXI

Manufacturer Part#:
157-A003

Stock#:
126141262

Specification:

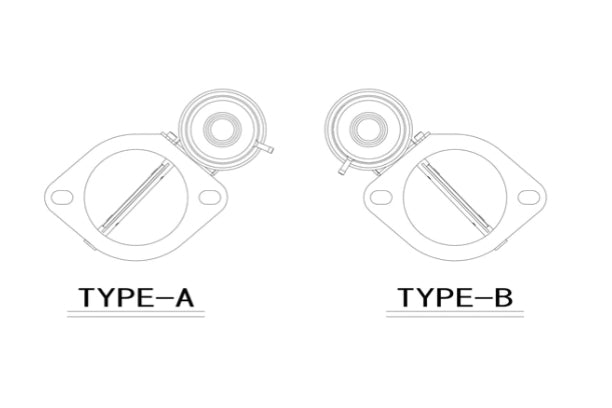

- Layout: Type B
- Flange Size Diameter: 70mm
- Valve Size Diameter: 67mm
- Bolt Pitch Range: 105-107mm

Remark:

>Click here to see more APEXi Active ECV Exhaust Control Valve (Valve Only)
*Must need an Active ECV Exhaust Control Valve Remote for them to work properly.
  • Volume control with remote control (wired).
  • Achieves automatic ON/OFF at any vehicle speed or rotation speed.
    *Fully closed at low rpm and fully open above the set rpm. A fully closed setting is not possible at high rpm.
  • One-touch operation for manual ON/OFF with your fingertips.
  • High-durability design that operates the actuator by the intake manifold pressure.
  • Simple control of fully open/fully closed by a solenoid valve.
    *Duty control such as half opening is not performed.

The volume is automatically controlled by electronic control.
  • The exhaust control valve ECV, which has been very popular, is finally becoming electric.
  • An actuator method that uses the negative pressure of the intake manifold is used to drive the butterfly valve, which is driven by a solenoid valve.
  • It has a highly durable and reliable structure with a low-pressure operation that controls ON/OFF.
  • The operation is simple with a single button due to the compact remote control (wired).
  • In addition, it is equipped with an auto mode that automatically turns on and off when the vehicle speed or the number of revolutions is reached.
  • Achieves both high quietnesses when fully closed and full opening performance of the muffler as you envisioned hands-free.

Stylish with a compact remote control.
  • The active ECV, which is literally wireless, does not require a hole to pull the control cable into the room as before.
  • Even vehicles that hesitate to make holes can be installed without problems.
  • Since the operation unit is a remote control (wired), it does not affect the image of the interior.
  • It is not always necessary to take the engine rotation pulse and the vehicle speed pulse. In that case, the specifications can be made only by turning ON/OFF manually.

Compatibility: (Scroll to see more)

*The listing compatibility is for JDM cars only.
Universal

*Product image for illustration purposes only. The actual product may vary.
